Description

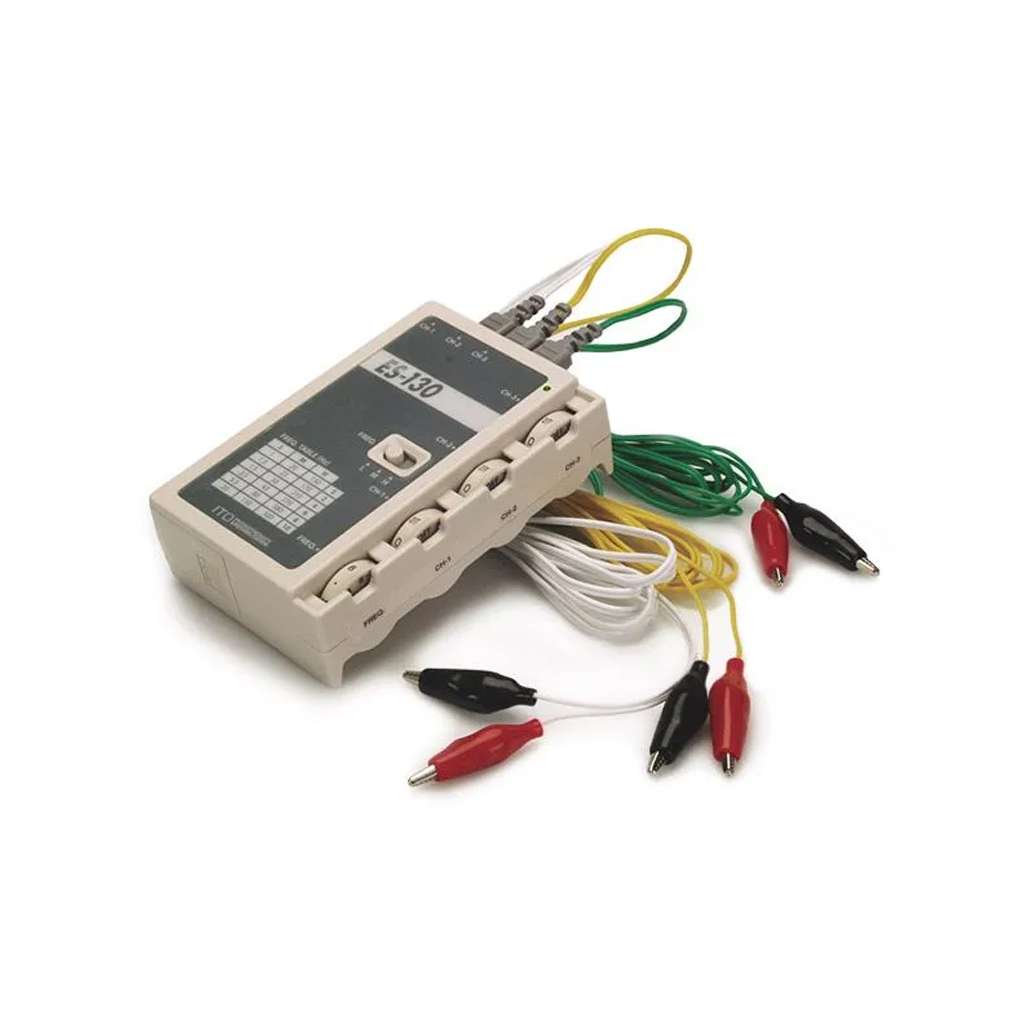

The ES-130 is the portable electroacupuncture device from Japanese manufacturer ITO. Battery powered, you can easily transport it between treatment rooms and suits a practitioner on the move.
| Channels | 3 |
| Intensity | 0-14 mA (milliamp) |
| Frequency | 1–500 Hz |
| Waves | Fixed Continuous |
| Attachment | – |
| Timer | – |
High Performance and Versatility
• Low/High intensity settings
• Frequency selector offers a complete frequency range (1–500Hz)
• Suitable for needles
Unique Wave Form
• Unique wave pulse minimizes excessive charge build up in the tissue and damaging the nerve
Safe, Reliable, and Easy to Use
• Each of the 3 channels are independently controlled
• Special dial controls allow easy use yet safe operation
• Built in battery life check with indicator light
Specifications
Power supply: 1 × DC 9 V battery
Frequency: 1–500 Hz, variable
Maximum output voltage: 30 V ± 15% (at 500Ω load)
Current amplitude (max.): 14 mA ± 20% rms (at 500Ω load)
Phase duration: 100 µs
Number of channel: 3
Others: Battery checker Pulse rate indication
Classification: Internally powered equipment Type BF, Class Ⅱa / MDD
Dimensions: 63 (W) × 27 (D) × 96 (H) mm
Weight: 120 g (without a battery)
Suitable for use with:
Clip leads for ES130 STLE0006
Battery not included.
